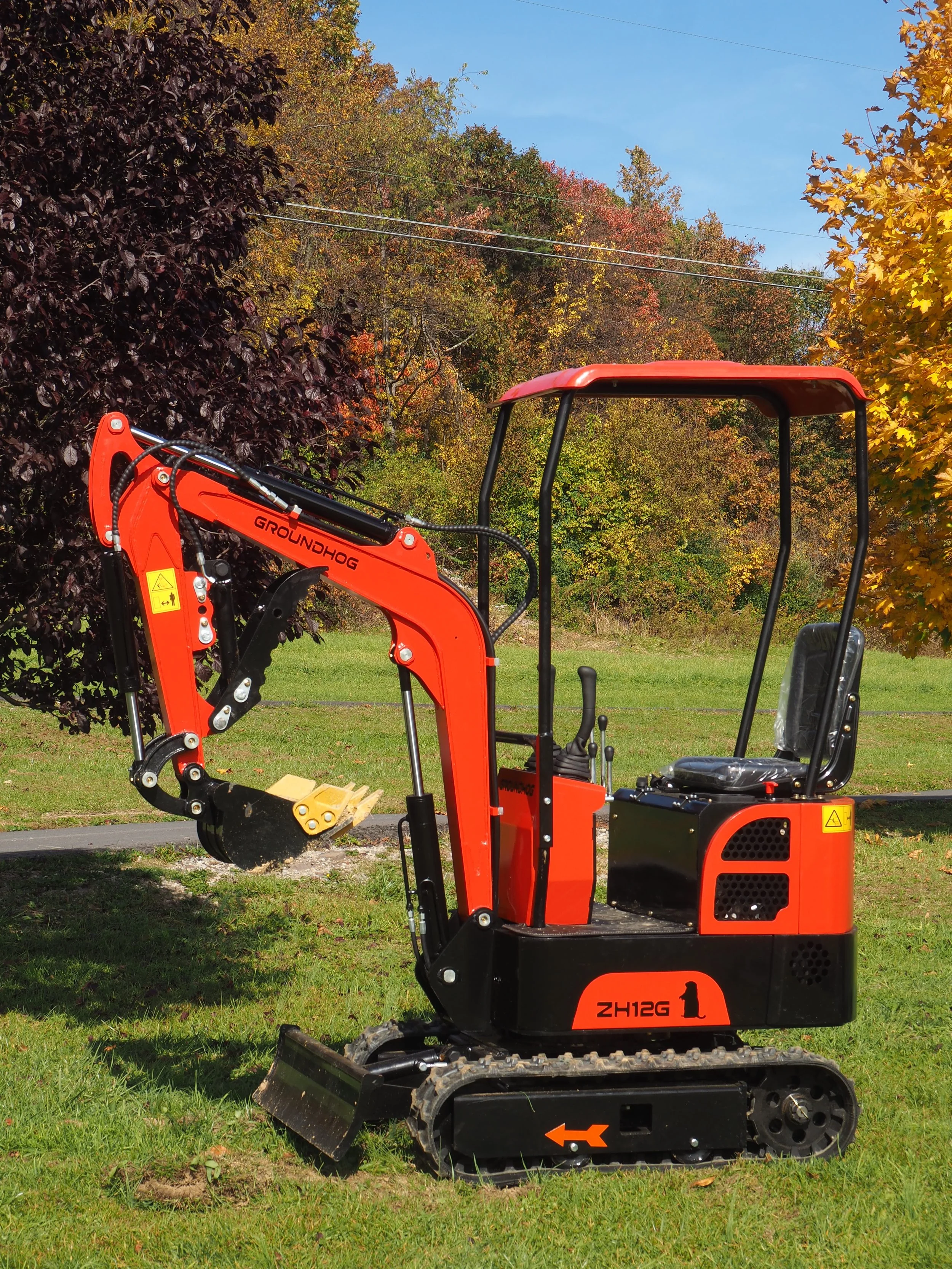

ZH12G

Starting at $6,600

MSRP on entry package, transportation and preparation fees may vary based on selection.

All ZH12G models come equipped with a 14 HP Briggs and Stratton XR Professional gas engine, Hydraulic oil cooler, metal console, Hydraulic thumb and a 4 post canopy.

  • Operating Weight – Rubber Tracks 1970 lbs

    Operating Weight – Steel Tracks 2570 lbs

    Engine Briggs and Stratton XR

    Engine HP 14 HP

    Bore Stroke Single cylinder, fan cool

    Main Pump G5-6

    Travel Speed 1 mph

    Overall Dimension 85″ x 39″

    Machine Width 39″

    Machine Height 7’1″

    Ground Clearance 6″

    Track Length 47″

    7″ Track Size 180x72x37″

    9″ Track Size 230x72x37″

    Track To Blade 55″

    Track Width 7″

    Track Height 12.5″

    Max Digging Depth 5’4″

    Max Digging Height 8′ 6″

    Max Dumping Height 6′ 4″

    Max Reach 8’8″

    Max Digging Radius 9’7″

    Bucket Size 16″ Tooth

    Breakout Weight 2300 lbs

    Max Digging Depth 5′ 6″

    Hydraulic Flow Rate 4.7 gpm

  • Powertrain Warranty items consist of the engine, both drive motors, hydraulic pump, swing motor, and central pivot valve body. warranty does not cover wear items such as lines, cylinders, tracks, pins, blades, seat, undercarriage, etc.
