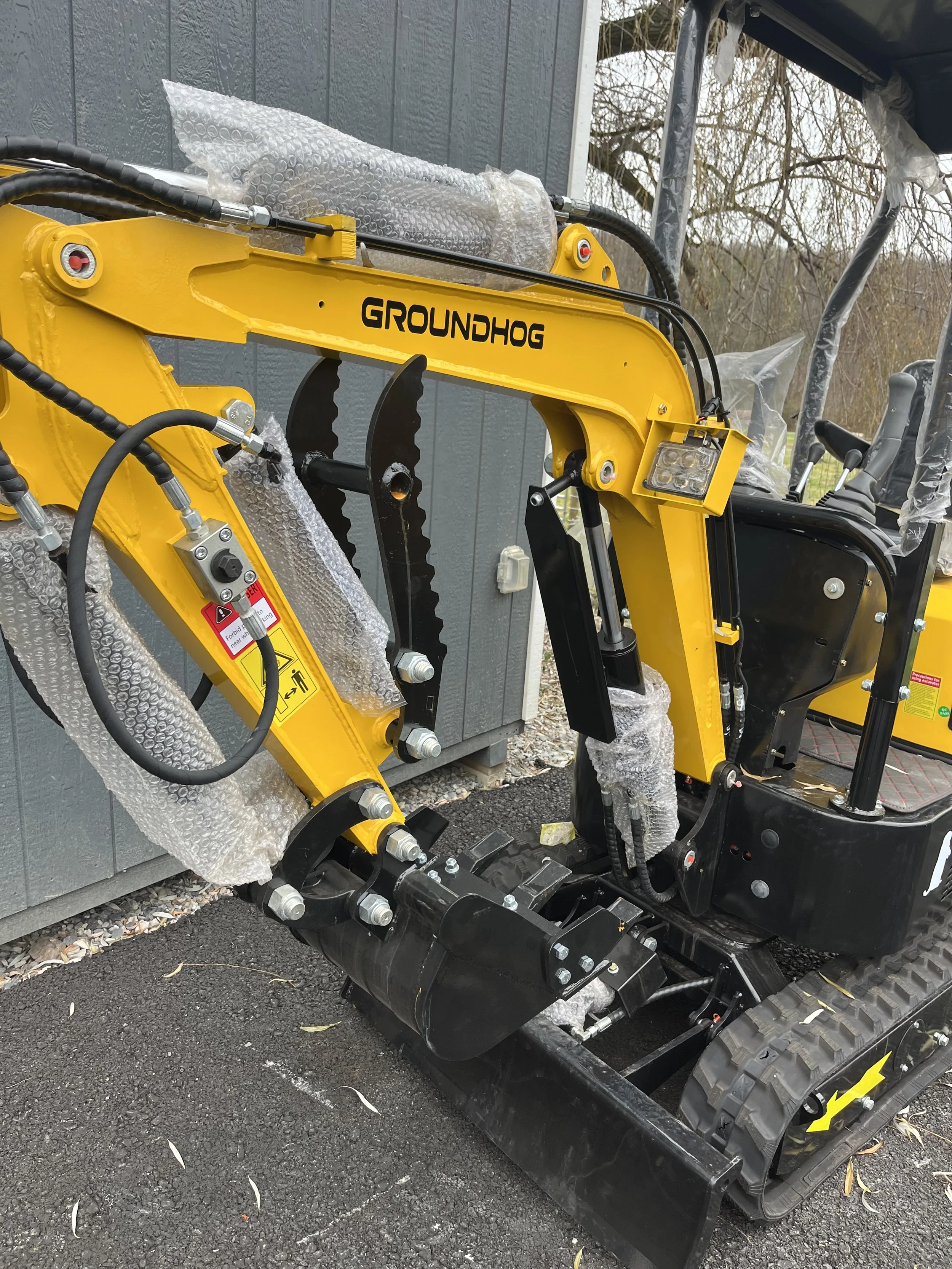

ZH14G-2

Starting at $9,900

MSRP on entry package, transportation and preparation fees may vary based on selection.

All ZH14G-2 models come equipped with a 14 HP Briggs and Stratton XR Professional gas engine, Hydraulic oil cooler, metal console, Hydraulic thumb and a 4 post canopy.

  • Operating Weight – Rubber Tracks

    2100 lbs

    Operating Weight – Steel Tracks

    2700 lbs

    Engine Briggs and Stratton

    Engine HP 14 HP

    Bore Stroke Single cylinder, fan cool

    Main Pump G5-6

    Travel Speed 1.5km/h

    Overall Dimension 109″ x 37″ x 87″

    Machine Width 36″

    Machine Height 7’4″

    Ground Clearance 6″

    Track Length 48″

    7″ Track Size 180x72x37″

    9″ Track Size 230x72x37″

    Track To Blade 54″

    Track Width 7″

    Track Height 12.5″

    Max Digging Depth 5’5″

    Max Digging Height 103″

    Max Dumping Height 73″

    Max Reach 8’11”

    Max Digging Radius 9’3″

    Bucket Size 16″ Tooth

    • Side Swing

    • Retractable Tracks

  • Powertrain Warranty items consist of the engine, both drive motors, hydraulic pump, swing motor, and central pivot valve body. warranty does not cover wear items such as lines, cylinders, tracks, pins, blades, seat, undercarriage, etc.
